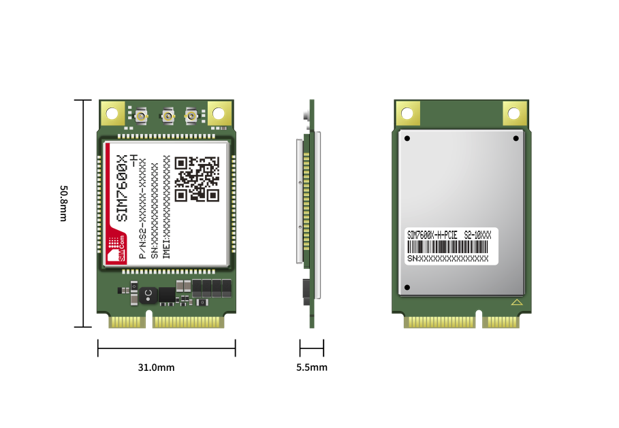

SIM7600-H-PCIE系列是LTE第4类模块，支持LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE等无线通信模式。它支持最大150Mbps下行链路速率和50Mbps上行链路速率。SIM7600-H-PCIE系列采用迷你PCIE外形尺寸，由SIM7600-H系列模块和迷你PCIE适配器板组成。客户很容易集成。SIM7600-H-PCIE系列集成了多个卫星高精度定位GNSS系统，具有多个内置网络协议，支持主要操作系统的驱动程序（适用于Windows、Linux和Android等的USB驱动程序）和软件功能，AT命令与SIM7500/SIM7600系列模块兼容。同时，SIM7600-H-PCIE系列集成了主要的工业标准接口，具有强大的扩展性，包括UART、USB、GPIO等丰富的接口，适用于远程信息处理、监控设备、CPE、工业路由器和远程诊断等主要物联网应用。
Product | SIM7600A-H-PCIE | SIM7600V-H-PCIE | SIM7600SA-H-PCIE | SIM7600JC-H-PCIE | SIM7600E-H-PCIE | SIM7600NA-H-PCIE | SIM7600G-H-PCIE | |
Form Factor | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | |
Dimensions(mm) | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | |
Frequency Bands | LTE-FDD | B2/B4/B12 | B2/B4/B5/B13 | B1/B2/B3/B4/B5/ B7/B8/B28/B66 | B1/B3/B8/B18/B19/B26 | B1/B3/B5/B7/B8/B20 | B2/B4/B5/B12/B13/ B14/B25/ B26/B66/B71 | B1/B2/B3/B4/B5/ B7/B8/B12/B13/ B18/B19/B20/B25/ B26/B28/B66 |
LTE-TDD | B40 | B38/B40/B41 | B41 | B34/B38/B39/ B40/B41 | ||||
WCDMA | B2/B5 | B1/B2/B5/B8 | 1/B5/B8
| B1/B2/B4/B5/ B6/B8/B19 | ||||
GSM | 850/900/1800/1900MHz | 900/1800MHz | 850/900/1800/1900MHz | |||||
Temperature GNSS | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | -40℃ ~ +85℃ Optional | |
Electrical Features | ||||||||
Supply Voltage(V) | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | |
Power Consumption(mA) | LTE | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
WCDMA, DRX=9 | 3.3 | 3.3 | 3.3
| 3.3 | ||||
GSM,BS_PA_MFRMS=2 | 2.8 | 2.8 | 2.8 | |||||
Data Transfer | ||||||||
LTE(Mbps) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | |
HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | ||||
WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | ||||
GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |||||
Software Features | ||||||||
Protocol | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | |
TLS | ● | ● | ● | ● | ● | ● | ● | |
File System | ● | ● | ● | ● | ● | ● | ● | |
Audio Record/Play | o | o | o | o | o | o | o | |
TTS | o | o | o | o | o | o | o | |
DTMF | o | o | o | o | o | o | o | |
LBS | ● | ● | ● | ● | ● | ● | ● | |
FOTA | ● | ● | ● | ● | ● | ● | ● | |
Jamming Detection | ● | ● | ● | ● | ● | ● | ● | |
Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | |
USB Driver | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | |
WWAN (RNDIS) | ● | ● | ● | ● | ● | ● | ● | |
ECM | ● | ● | ● | ● | ● | ● | ● | |
MBIM | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | |
NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | |
Open Linux | o | o | o | o | o | o | o | |
Firmware Upgrade | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | |
Interfaces | ||||||||
SIM Card | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | |
UART | ● | ● | ● | ● | ● | ● | ● | |
USB | ● | ● | ● | ● | ● | ● | ● | |
PCM | o | o | o | o | o | o | o | |
Analog Audio | o | o | o | o | o | o | o | |
Embedded SIM card socket | o | o | o | o | o | o | o | |
Diversity Receiver | ● | ● | ● | ● | ● | ● | ● | |
Certification | ||||||||
Regulatory | RoHS\REACH\FCC\PTCRB\IC | RoHS\REACH\FCC\GCF | RoHS\REACH\FCC\NCC\ACMA\CE(RED)\Anatel | RoHS\REACH\Telec\Jate | RoHS\REACH\CE(RED)\GCF\IMDA\DTAG | RoHS\REACH\FCC\IC\PTCRB\GCF | RoHS\REACH\CE(RED)\FCC\IC\RCM\CCC\Telec\Jate\Anatel\NCC | |
Carrier | AT&T | Verizon | Docomo/Softbank | Deutsche Telekom /Vodafone | AT&T/Verizon/ Sprint*/T-mobile | AT&T\Verizon\T-Mobile | ||
