首页 > 产品中心 > SIMCom 芯讯通(代理) > 5G模组

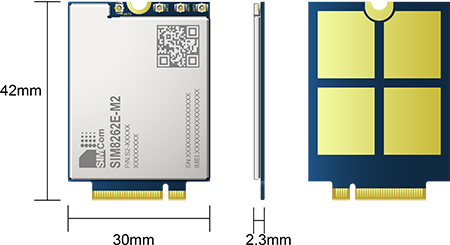

SIM8262X-M2是支持R16 5G NSA/SA的多频带5G NR/LTE-FDD/LTE-TTD/HSPA+模块。它具有强大的扩展能力，具有丰富的接口，包括PCIe、USB3.1、GPIO等。该模块为客户的应用程序提供了极大的灵活性和易于集成性。SIM8262X-M2采用M2型。SIM8262X-M2的AT命令与SIM8300系列模块兼容。这也最大限度地减少了客户的投资，并缩短了上市时间。它设计用于在各种无线电传播条件下需要高吞吐量数据通信的应用。由于性能、安全性和灵活性的独特组合，该模块非常适合许多应用。
Product | SIM8262E-M2 | SIM8262A-M2 | |
Form Factor | M.2 | M.2 | |
Dimensions(mm) | 42.0*30.0*2.3 | 42.0*30.0*2.3 | |
Frequency Bands | 5G Sub-6G | n1,n3,n5,n7,n8,n20,n28,n38,n40,n41,n77,n78,n79 | n2,n5,n7,n12,n13,n14,n25,n30,n41,n48,n66,n71,n77,n78,n79 |
LTE-FDD | B1,B3,B5,B7,B8,B18,B19,B20,B26,B28,B32 | B2,B4,B5,B7,B12,B13,B14,B25,B26,B29,B30,B66,B71 | |
LTE-TDD | B38,B39,B40,B41,B42,B43 | B41,B46,B48 | |
WCDMA | B1,B5,B8 | B2/B4/B5 | |
GNSS | GPS/GLONASS/Beidou/Galileo/QZSS | GPS/GLONASS/Beidou/Galileo/QZSS | |
Temperature | -30℃ ~ +70℃ | -30℃ ~ +70℃ | |
Electrical Features | |||
Supply Voltage(V) | 3.135 ~ 4.4 | 3.135 ~ 4.4 | |
Data Transfer | |||
Sub-6G | 2.4Gbps(DL)/500Mbps(UL) | 2.4Gbps(DL)/500Mbps(UL) | |
LTE | 1Gbps(DL)/200Mbps(UL) | 1Gbps(DL)/200Mbps(UL) | |
HSPA+ | 42Mbps (DL)/5.76Mbps(UL) | 42Mbps (DL)/5.76Mbps(UL) | |
Software Features | |||
Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 | |
TLS | ● | ● | |
File System | ● | ● | |
FOTA | ● | ● | |
Android RIL | Android 6/7/8/9 | Android 6/7/8/9 | |
USB Driver | Microsoft Windows Win7/Win8/Win10/Linux/Android | Microsoft Windows Win7/Win8/Win10/Linux/Android | |
MBIM | Win8/Win10 | Win8/Win10 | |
NDIS | Linux/Win7/Win8/Win10 | Linux/Win7/Win8/Win10 | |
Firmware Upgrade | USB | USB | |
Interfaces | |||
SIM Card | 1.8V/2.95V | 1.8V/2.95V | |
USB | ● | ● | |
PCM | ● | ● | |
I2C | ● | ● | |
Diversity Receiver | ● | ● | |
Certifications | |||
Regulatory | CE(RED)*/FCC*/RoHS*/REACH* | CE(RED)*/FCC*/RoHS*/REACH* | |
