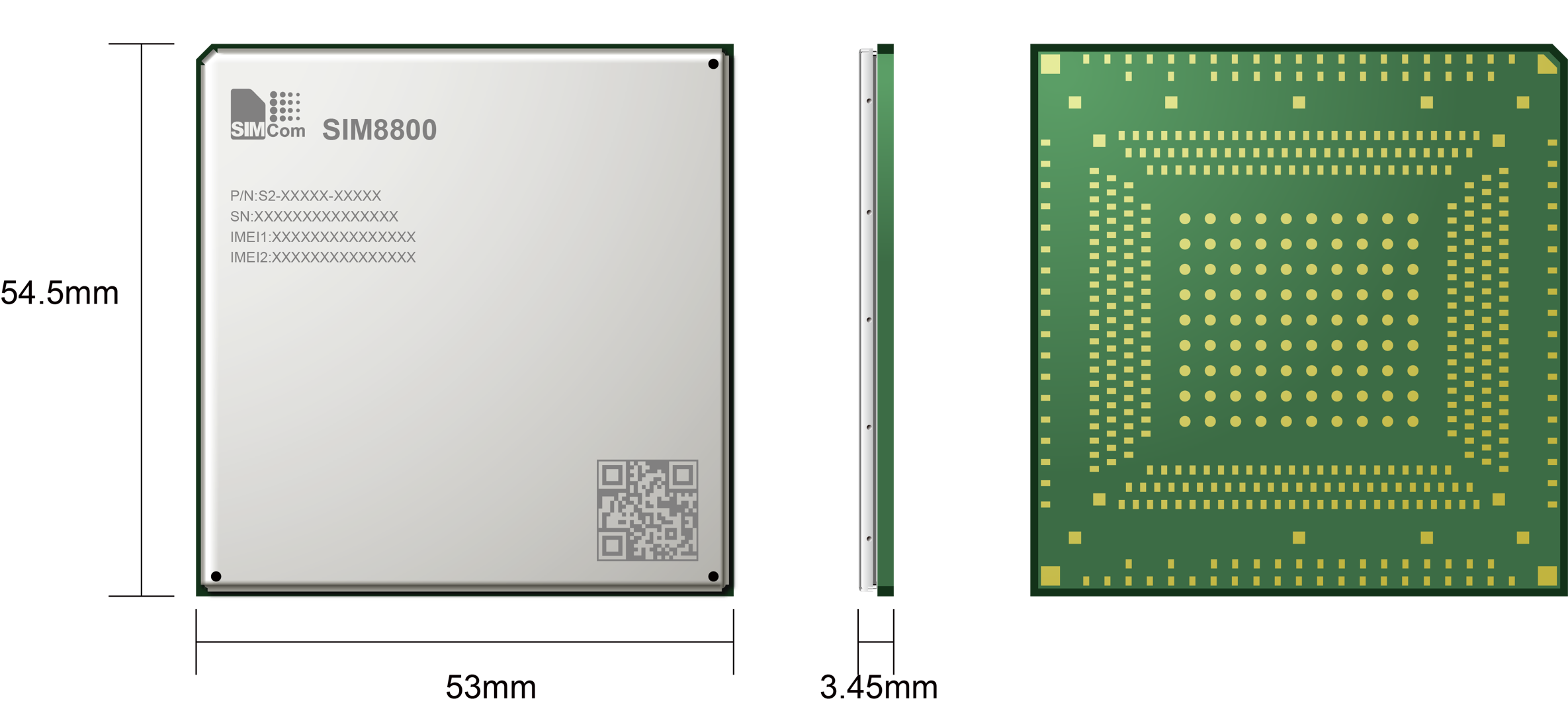

SIM8800系列模块是汽车级多频带5G NR和C-V2X模块，支持R15 5G NSA/SA高达2.4Gbps的数据传输。它具有强大的扩展能力，具有丰富的接口，包括PCIe、USB3.1、GPIO等。该模块为客户的应用程序提供了很大的灵活性和易于集成性。SIM8800系列模块采用LGA形状因子，AT命令与SIM8200系列模块兼容。这也最大限度地减少了客户的投资，并缩短了上市时间。它专为符合IATF 16949要求的汽车应用而设计，为汽车应用提供了性能、安全性和灵活性的独特组合
| Product | SIM8800CE | SIM8800E | |
| Form factor | LGA, 524 PIN | LGA, 524 PIN | |
| Dimensions(mm) | 54.5*53.0*3.45 | 54.5*53.0*3.45 | |
| Frequency Bands | 5G NR | n1/n3/n28/n41/n78/n79 | n1/n3/n8/n20/n28/n41/n78/n79 |
| LTE-FDD | B1/B3/B5/B7/B8 | B1/B3/B5/B7/B8/B20/B28/B32 | |
| LTE-TDD | B34/B38/B39/B40/B41 | B38/B40/B41/B42 | |
| WCDMA | B1/B8 B1/B3/B5/B6/B8 | ||
| GSM | 900/1800MHz | 900/1800 MHz | |
| GNSS | ● | ● | |
| Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |
| Electrical Features | |||
| Supply Voltage(V) | 3.3V ~ 4.3V | 3.3V ~ 4.3V | |
| Power Consumption(mA) | 5G NR | TBD | TBD |
| LTE-FDD | TBD | TBD | |
| LTE TDD | TBD | TBD | |
| WCDMA, DRX=9 | TBD | TBD | |
| GSM,BS_PA_MFRMS=2 | TBD | TBD | |
| Data Transfer | |||
| 5G NR(Mbps) | 2400(DL)/900(UL) | 2400(DL)/900(UL) | |
| LTE(Mbps) | 1000 (DL)/200(UL) | 1000 (DL)/200(UL) | |
| HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | |
| WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | |
| GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |
| Software Features | |||
| Protocol | TCP/ UDP/ PPP/ PING/ FTP(S)/ HTTP(S)/ SMTP/ SSL/ TLS/ MMS/ NTP/ FILE/ QMI | TCP/ UDP/ PPP/ PING/ FTP(S)/ HTTP(S)/ SMTP/ SSL/ TLS/ MMS/ NTP/ FILE/ QMI | |
| eCall | ● | ● | |
| TLS | ● | ● | |
| File System | ● | ● | |
| Audio Record/Play | ● | ● | |
| TTS | ● | ● | |
| DTMF | ● | ● | |
| LBS | ● | ● | |
| FOTA | ● | ● | |
| Jamming Detection | ● | ● | |
| Security | Trust Zone/ Secure Boot/ SE-Linux | Trust Zone/ Secure Boot/ SE-Linux | |
| Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | |
| USB Driver | Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x | Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x | |
| WWAN (RNDIS)/ECM | ● | ● | |
| MBIM | Win8/Win10 | Win8/Win10 | |
| NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | |
| Open Linux | ● | ● | |
| Firmware Upgrade | USB/FOTA | USB/FOTA | |
| Wi-Fi/BT | 2.4G/5G/BLE5.2 | 2.4G/5G/BLE5.2 | |
| Interfaces | |||
| SIM Card | 1.8V/3.0V | 1.8V/3.0V | |
| UART | 3*UART | 3*UART | |
| USB | 1* USB 3.1/2.0 | 1* USB 3.1/2.0 | |
| PCIe | ● | ● | |
| PCM | ● | ● | |
| I2S | ● | ● | |
| ADC | *2 | *2 | |
| SDIO | SDIO3.0(200MHz Max) | SDIO3.0(200MHz Max) | |
| SPI | ● | ● | |
| I2C | ● | ● | |
| RGMII | ● | ● | |
| Diversity Receiver | ● | ● | |
| Certification | |||
| Regulatory | 3C/SRRC/NAL*/RoHS*/REACH* | CE-RED*/RoHS*/REACH* | |
